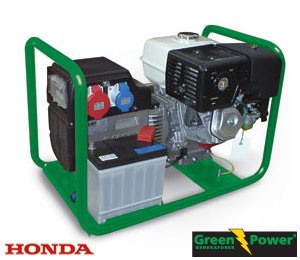

Genset 5.5kVA 4.4kW Single phase Automatic or Manual start




greenpower

Standard Genset Specifications
  • Honda heavy duty Petrol engine
  • Air cooled, 4 stroke horizontal engine
  • Automatic decompression for easy starting
  • Heavy duty ball bearing supported crankshaft
  • Double walled heavy duty tank with in tank fuel strainer
  • Oil alert technology
  • Honda Engine Manual

Technical Data

Generator Engine

Honda GX 270

Type Air cooled 4-stroke
OHV petrol engine,
  Engine type 25° inclined cylinder, horizontal shaft,
  cast iron sleeve
Displacement

270 cm3

Compression ratio 8.5:1
Bore x Stroke

77 x 58 mm

Prime Power

5.5 kVA/ 4.4 KW

Stand-by power

6 kVA/4.8 KW

Speed

3000 rpm

Max. net torque

19.1 Nm / 14.1 lb-ft / 2 500 rpm

Ignition system

Digital CDI with variable ignition timing

Starting System Recoil Starter (electric start optional)

Landuse Type of Unit

Low Noise, Automation Type

Fuel. cons at cont. rated power

1.6 L/hr

Engine oil capacity 1.1 lt
Fuel tank Capacity 6 lt

Dimensions (LxWxH)

740 x 450 x 500 mm

Weight 58/76 Kg



GreenPower generators equipped with gasoline engine from Honda. The units are especially produced for settlements, mobile installations, camping sites, hobby use etc.

Delivered in 1-phase 230 volts, 50 Hz.
GreenPower electrical panel, generator and MCB.
Manual or Electrical start function.

 Standard equipment  Accessories
 Handstart, Electrical start (optional)
 Indicator, work time
 Mobile wagon

 Other configurations
 Models with different voltage
60 Hz version
 Automatical start




Engine Features
  • Fuel Efficient, High Output Operation
  •  Smooth Performance
  •  Exceptionally Quiet
  •  Proven Reliability
  •  Easy to Use and Maintain
  •  Easy Starting
  •  Emissions Compliant

» Click Here to view the Engine Datasheet

Available Options

  • Low profile versions
  • Gear reduction options
  • Electic start
  • Spark arrester available
  • Charge and lamp coils with multiple output options available
  • Cyclone Air Cleaner available
  Alternator
  • Brushless, single bearing system, 2 poles
  • Insulation class H with circuit breaker protection
  • Standard degree of protection IP 23
  • Self-exciting and self-regulating
  • Screen protected and drip proof
  • Close voltage regulation

  • Genset 5.5kVA 4.4kW Single phase Automatic or Manual start
    Art. nr.
    GP5.5HS
    Genset 5.5kVA 4.4kW Single phase Automatic or Manual start
    Write down the model and the required equipment for quotation :
