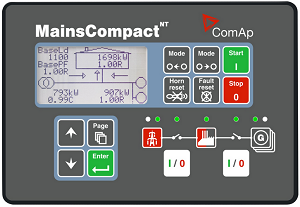

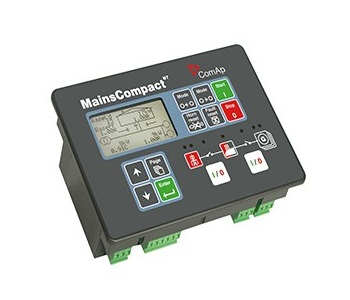

MainsCompact NT Gen-Set Controller


MainsCompact NT Gen-Set Controller


MainsCompact NT
Mains controller for multiple systems equipped with InteliCompact NT MINT gen-set controllers.

Main features
:
Mains controller for multiple systems equipped with InteliCompact NT MINT gen-set controllers
Manual and remote start applications
Mains circuit breaker control
Optional Master Generator circuit breaker control
AMF function (automatic start of the gen-set group after mains is failed)
True voltage and current RMS measurement
Outstanding EFI engine support with diagnostic messages in plain text
3 phase mains voltage and current measurement
3 phase busbar voltage measurement
3 phase mains import measurement
Event and performance log
2 languages (user changeable)

Setup Software

Lite Edit – PC Tool for Configuration and Supervision of IL Controllers
To be used with InteliLite and InteliCompact controllers

Remote control and monitoring, parameters adjustment
Configuration, programming
Support of electronic engines
Connection via RS232, modem, internet
To be used with InteliLite and InteliCompact controllers
Remote control and monitoring, parameters adjustment
Configuration, programming
Support of electronic engines
Connection via RS232, modem, internet

MainsCompact NT Controller/Function
Power supply range 8-36V DC
Operating temperature -20 to -70 °C
Operating temperature (LT
version)
-40 to -70 °C
Protection degree (front
panel)
IP65
Measurement inputs 3 ph bus voltage
3 ph mains voltage
Voltage range 480 V Ph-Ph (277 V Ph-N)
Max. measured voltage 340 V Ph-N
Measurement inputs 3ph mains current
Current range 5 A
Max. measured current 9 A
Number of Binary input 7 non-isolated
Number of Binary output 6 non-isolated
Number of Analog Input 3 non-isolated
Communication
CAN1 External modules
250 kbps, max 200 m Isolated
CAN2 Intercontroller and comm extensions 250/50 kbps, max 200/800 m
Isolated
Display type Built-in monochromatic
Resolution 128x64


Accessories

I-LB+ Local Bridge
IB-Lite Internet / Ethernet Module including Web Server
IG-IB Internet Bridge
IG-IOM Analog/Binary Input/Output Module
IGL-RA15 Remote Annunciator
IGS-PTM Analog/Binary Input/Output Module
IL-NT RS232 RS232 Extension Board
IL-NT RS232-485 Dual Port Extension Board
IL-NT S-USB Service USB Module


» MainsCompact NT Product LeafLet

  • MainsCompact NT Gen-Set Controller
    Art. nr.
    GSC27
    MainsCompact NT Gen-Set Controller
