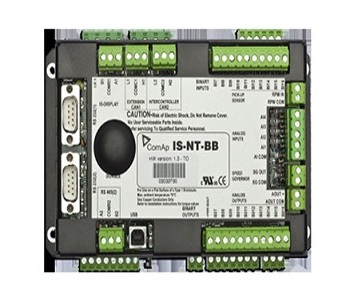

InteliSys NT BaseBox Gen-Set Controller
InteliSys NT BaseBox Complex Parallel and Cogeneration (CHP) Gen-set Controller
Features
- Gen-set controller for single or multiple generating sets operating in standby or parallel modes
- Support of cogeneration (CHP) and other complex applications
- To be used in conjunction with detachable colour display InteliVision 8 or monochromatic display IS-Display
- Support of engines with ECU (Electronic Control Unit)
- Many communication options – easy remote supervising and servicing
- Gen-set performance log for easy problem tracing
- Automatic synchronizing and power control (via speed governor or ECU)
- Baseload, Import / Export, TempByPower, Peak shaving, Voltage and PF control (AVR)
- Generator measurement, Mains measurement
- Inputs and outputs configurable for various customer needs
- Controller redundancy
- Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
- Integrated PLC programmable functions
- Integrated fixed and configurable protections
- USB 2.0 slave interface
|
InteliSys NTC BaseBox Controller/Function Chart |
|
| Order code | IS-NTC-BB |
| Binary Inputs / Outputs | 16/16 (112/112) 1) |
| Analog Inputs/Outputs | 4/1 (84/33) 1) (configurable as tristate) |
| AMF function | • |
| GCB control with feedback | • |
| Integrated PLC | Extended |
| Input configuration | • |
| Output configuration | • |
| Voltage measurement Gen / Mains (bus) |
3 ph / 3 ph 120V / 277V |
| Current measurement | 3ph + 1 / 6w IDMT overcurrent 1A / 5A |
| kW / kWh / kVA measurement | •/•/• |
| Communication interfaces | CAN1, CAN2, RS232, 2× RS485, USB, Ethernet, Modbus, Modbus TCP, AirGate, Web server |
| ECU support | • |
| Active call / SMS support | • |
| Forward / Reverse synchronizing / Mains parallel operation |
•/•/• |
| Multiple operation / Power Management System |
•4) |
| Display | External |
| History (max records)5) | 4000 |
