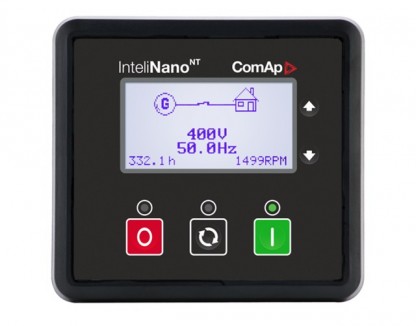

InteliNano NT AMF Genset Controller


InteliNano NT AMF Genset Controller


InteliNano NT AMF Genset Controller
Auto Mains Failure (AMF) Genset Controller

Specification
Controller for single gen-set operating in standby applications 3 Phase generator voltage measurement 3 Phase mains voltage measurement Connection type and voltage auto detect Various generator and engine protections.

Features
  • Controller for single gen-set operating in standby applications
  • Gen-set monitoring and protection
  • Weak battery gen-set starting
  • True voltage RMS measurement 3 phase
  • EFI engine support with diagnostic message
  • Up to 3 configurable analog inputs
  • Up to 6 binary inputs
  • Up to 6 binary outputs
  • 2 high current outputs
  • Gasoline engine support – choke output
  • D+ pre-excitation terminal
  • CAN with J1939 support
  • USB communication interface
  • USB one cord programming
  • Light tower support / special LCD screen when the controller is used as MRS controller
  • User-friendly installation / operation
  • The biggest graphical display in its class
  • Language free - only symbols and numbers

    Technical Data
    Power Supply Range  6 – 36 V DC
    Operating temperature -20°C to 70°C
    Total number of binary outputs up to 6*
    Number of low current binary outputs 4
    Number of high current binary outputs 2
    Total output current 10A – long term
    15A – short term
    No. of Analog inputs up to 3
    Measurement Inputs 3ph generator voltage, 3ph mains voltage
    Dimensions (WxHxD) 118x108x40 mm


» AMF Schematic diagram

» InteliNano NT AMF Reference Guide

  • InteliNano NT AMF Genset Controller
    Art. nr.
    GSC04
    InteliNano NT AMF Genset Controller
