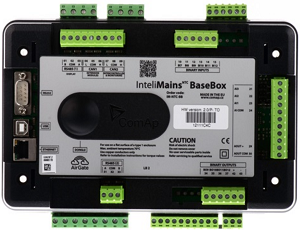

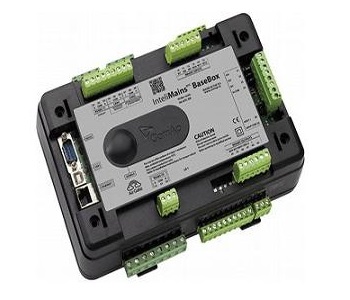

InteliMains NTC BaseBox Gen-Set Controller
InteliMains NTC BaseBox
To be used in conjunction with detachable colour displays InteliVision 5, InteliVision 5 RD or InteliVision 8
Many different power control modes available
System Baseload with limited export or minimal import
Import/Export power control of gen-set group
Temperature of the system by power control
Dynamic changes of required system power via analog input
Reverse synchronization of the loaded gen-set group to mains
Forward synchronization of Mains to gen-set group
Coupling of several synchronized mains to a common bus
Allows to build complex applications with more mains incomers, bus-tie breakers, load management etc.
AMF function, Peak shaving
Mains measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAh
Bus measurement: U, Hz (kW, kVAr, PF - via CAN from gen-set group)
Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
Inputs and outputs configurable for various customer needs
12 Binary inputs
12 Binary outputs
3 Analog inputs
1 Analog output
Bipolar binary outputs - possibility to use BO as High or Low side switch
Many communication options – easy remote supervising and servicing
1× RS232 / 1× RS485 interface with Modbus protocol support
Analog / GSM / ISDN / CDMA modem communication support
SMS messages
RS485 converter is isolated (one RS485 Display-dedicated port)
AirGate support
Ethernet connection (RJ45)
USB 2.0 slave interface
Controller redundancy
Event-based history (up to 1000 records) with customer-selectable list of stored values
RTC
Statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections
DIN-Rail mount of the controller
Customized firmware solution
Possible firmware applications:
MCB application (controller is controlling Mains Circuit Breaker and provides import/export to Mains functions and other related features)
MGCB application (controller is controlling Mains Circuit Breaker and Master Gen-set Circuit Breaker and provides import/export to Mains functions and other related features)
BTB application (controller is controlling Bus Tie Breaker and provides enhanced options for breaker control dependent on various user settings and left and right bus parameters, full support of control groups is included)
FDR application (contoller is controlling Load Circuit Breaker and provides wide variety of functions related to load management)
Mains Supervision Controller Base Unit with Extended Communications for Use with Detachable Colour Display
Features
For multiple up to 31 gen-sets operating in parallel to mains (or isolated parallel)Features
To be used in conjunction with detachable colour displays InteliVision 5, InteliVision 5 RD or InteliVision 8
Many different power control modes available
System Baseload with limited export or minimal import
Import/Export power control of gen-set group
Temperature of the system by power control
Dynamic changes of required system power via analog input
Reverse synchronization of the loaded gen-set group to mains
Forward synchronization of Mains to gen-set group
Coupling of several synchronized mains to a common bus
Allows to build complex applications with more mains incomers, bus-tie breakers, load management etc.
AMF function, Peak shaving
Mains measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAh
Bus measurement: U, Hz (kW, kVAr, PF - via CAN from gen-set group)
Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
Inputs and outputs configurable for various customer needs
12 Binary inputs
12 Binary outputs
3 Analog inputs
1 Analog output
Bipolar binary outputs - possibility to use BO as High or Low side switch
Many communication options – easy remote supervising and servicing
1× RS232 / 1× RS485 interface with Modbus protocol support
Analog / GSM / ISDN / CDMA modem communication support
SMS messages
RS485 converter is isolated (one RS485 Display-dedicated port)
AirGate support
Ethernet connection (RJ45)
USB 2.0 slave interface
Controller redundancy
Event-based history (up to 1000 records) with customer-selectable list of stored values
RTC
Statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections
DIN-Rail mount of the controller
Customized firmware solution
Possible firmware applications:
MCB application (controller is controlling Mains Circuit Breaker and provides import/export to Mains functions and other related features)
MGCB application (controller is controlling Mains Circuit Breaker and Master Gen-set Circuit Breaker and provides import/export to Mains functions and other related features)
BTB application (controller is controlling Bus Tie Breaker and provides enhanced options for breaker control dependent on various user settings and left and right bus parameters, full support of control groups is included)
FDR application (contoller is controlling Load Circuit Breaker and provides wide variety of functions related to load management)
| InteliMains NTC BaseBox | |
| Power supply range | 8-36 VDC |
| Operating temperature | -40°C to +80°C |
| Storage temperature | -40°C to +80°C |
| Voltage Measurement inputs | 3ph-n Mains voltage 3ph-n Bus voltage |
| Voltage Measurement range | 110V/277V |
| Current Measurement inputs | 3ph Mains current 1ph Bus current |
| Current Measurement range | 1A/5A |
| Binary inputs Number | 12 non-isolated |
| Binary outputs Number | 12 non-isolated |
| Analog inputs Number | 3 non-isolated |
| Number of Analog outputs | 1 |
| Communication | |
| RS232 | Direct/Modbus, non-isolated |
| RS485 | Direct/Modbus, isolated |
| Display port | non-isolated RS485, only terminal connection |
| USB port | Direct, isolated |
| Ethernet port | LAN/Internet, Modbus TCP, SNMP, WebServer, Airgate |
| CAN1 | External modules 250kbps, max 200m Isolated |
| CAN2 | Intercontroller and comm extensions 250/50kbps, max 200/1000m Isolated |
