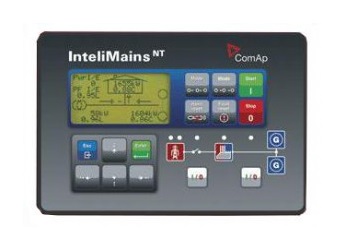

InteliMains NT Gen-Set Controller


InteliMains NT Gen-Set Controller


InteliMains NT Mains Supervision Controller

Features
For multiple up to 31 gen-sets operating in parallel to mains (or isolated parallel)
Import/export power control of the gen-set group; many different power control modes available
Reverse synchronization of the loaded gen-set group to mains
Coupling of several synchronized mains to a common bus
Allows to build complex applications with more mains incomers, bus-tie breakers etc.


InteliMains NT Mains Supervision Controller
Power supply range 8-36V DC
Operating temperature -30°C to 70°C
Storage temperature -40°C to 80°C
Voltage Measurement inputs 3ph-n Mains voltage
3ph-n Bus voltage
Voltage Measurement range 110V/277V
Current Measurement inputs 3ph Mains current
1ph Bus current
Current Measurement range 1A/5A
Binary inputs Number 6 non-isolated
Binary outputs Number 6 non-isolated
Communication
RS232 Direct/Modbus
Display port non-isolated RS485,
direct/modbus/terminal connection
CAN1 External modules
250kbps, max 200m
Isolated
CAN2 Intercontroller and comm extensions 250/50kbps, max 200/1000m
Isolated
Display
Type Built-in monochromatic
Resolution 128x64
Front cover IP65
Others Control buttons, Display buttons,
Breaker and voltage stage LEDs

    » InteliMainsNT ProductLeaflet

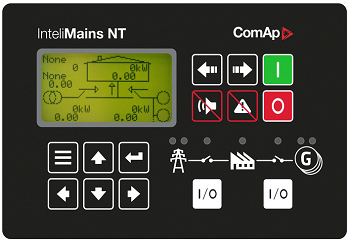

    • InteliMains NT Gen-Set Controller
      Art. nr.
      GSC38
      InteliMains NT Gen-Set Controller
