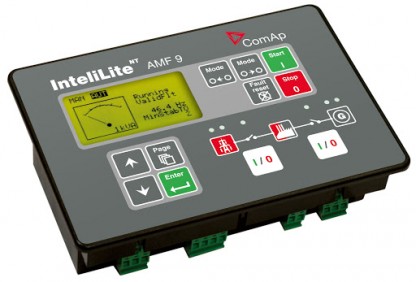

InteliLite Telecom Gen-Set Controller
InteliLite Telecom Gen-Set Controller
Auto Mains Failure (AMF) Genset Controller for Telecommunications
Specification
The InteliLite Telecom is the perfect genset controller designed specifically for needs of Mobile operators and Tower companies. To comply with demands of modern Telecommunication environment, the controller has been equipped with ComAp’s unique remote communication capabilities and rich portfolio of OPEX saving capacities. Beside typical AMF function, the controller incorporates complex battery charging management features, which enable BTS operators to start and stop the generating-set based on status of the backup battery.
In such a case, the InteliLite Telecom controller can deliver significant cost savings as the generating-set is used to charge the battery, which consequently powers the load – this is called a cycling operation.
Beside functions related to battery charging management, the controller also contains other important features for BTS applications, like fuel measurement, air conditioning control, statistics for OPEX evaluation and predictive maintenance, support of telecom standard protocols (e.g. SNMP), and many more, some of which are mentioned below.
Features
Smart battery charging and cycling management for lower OPEX
WebSupervisor, AirGate and LOCATE support*
Automatic SMS on alarm or event & genset control over SMS*
On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite
Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
Fuel theft protection and Total fuel consumption monitoring
Air-conditioning control
Full gen-set monitoring and protection
Outstanding EFI engine support with diagnostic messages in plain text via J1939
Detailed RTC event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in and CAN bus extension modules capability
Earth fault current protection*
A/B start battery support
Alternative switchable configuration
Dual mutual stand-by (Dual AMF) support
Supports prime power (MRS) applications including the telecommunication battery charging and cycling management
Automatic and manual GCB and MCB control
Magnetic pickup input
D+ preexcitation terminal
Measuring of the telecommunication battery up to 70 V DC
True RMS measurement
SNMP protocol support*
3 phase power measurement of gen-set and mains incl. kWh
3 configurable analog inputs
7 binary inputs
7 binary outputs
» InteliLite Telecom Product LeafLet
Auto Mains Failure (AMF) Genset Controller for Telecommunications
Specification
The InteliLite Telecom is the perfect genset controller designed specifically for needs of Mobile operators and Tower companies. To comply with demands of modern Telecommunication environment, the controller has been equipped with ComAp’s unique remote communication capabilities and rich portfolio of OPEX saving capacities. Beside typical AMF function, the controller incorporates complex battery charging management features, which enable BTS operators to start and stop the generating-set based on status of the backup battery.
In such a case, the InteliLite Telecom controller can deliver significant cost savings as the generating-set is used to charge the battery, which consequently powers the load – this is called a cycling operation.
Beside functions related to battery charging management, the controller also contains other important features for BTS applications, like fuel measurement, air conditioning control, statistics for OPEX evaluation and predictive maintenance, support of telecom standard protocols (e.g. SNMP), and many more, some of which are mentioned below.
Features
Smart battery charging and cycling management for lower OPEX
WebSupervisor, AirGate and LOCATE support*
Automatic SMS on alarm or event & genset control over SMS*
On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite
Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
Fuel theft protection and Total fuel consumption monitoring
Air-conditioning control
Full gen-set monitoring and protection
Outstanding EFI engine support with diagnostic messages in plain text via J1939
Detailed RTC event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in and CAN bus extension modules capability
Earth fault current protection*
A/B start battery support
Alternative switchable configuration
Dual mutual stand-by (Dual AMF) support
Supports prime power (MRS) applications including the telecommunication battery charging and cycling management
Automatic and manual GCB and MCB control
Magnetic pickup input
D+ preexcitation terminal
Measuring of the telecommunication battery up to 70 V DC
True RMS measurement
SNMP protocol support*
3 phase power measurement of gen-set and mains incl. kWh
3 configurable analog inputs
7 binary inputs
7 binary outputs
* Plug-in module required
|
Technical Data |
|
| Power Supply Range | 8 – 36 VDC |
| Operating temperature | -20°C to 70°C |
| Number of binary inputs | 7 non-isolated |
| Number of binary outputs | 7 non-isolated |
| Number of Analog Inputs | 3 non-isolated |
| Operating voltage | 8-36 V DC |
| Max current | 0,5 A (2 A per group) |
| No. of Analog inputs | up to 3 |
| Measurement Inputs | 3ph generator voltage, 3ph mains voltage |
| Resolution | 128x64 |
| Display Type | Built-in monochromatic |
