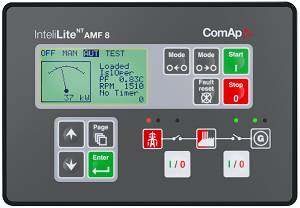

InteliLite NT AMF 8 Gen-Set Controller


InteliLite NT AMF 8 Gen-Set Controller


InteliLite NT AMF 8 Gen-Set Controller

Features
Compact gen-set controller for single genset operating in standby mode
Meets all requirements for Auto Mains Failure (AMF) applications
Easy to setup
Wide gen-set monitoring and protection
Running hours event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in extension modules capability
Automatic SMS on alarm or event & gen-set control over SMS*
Supports prime power (MRS) applications
Automatic and manual GCB and MCB control
D+ preexcitation terminal
True RMS measurement
3 phase power measurement
3 configurable analog inputs
4 binary inputs
6 binary outputs

Inputs/Outputs overview
Model: IL-NT AMF8
BIN: 4+8*
BOUT:6+8*
AI: 3
AOUT: 8*
COM1: Y*
COM2:Y*
CAN: N
RPM: N
Gen. Voltage: Y
Mains Voltage: Y
Gen. Current:  Y

Note:
* With optional plug-in module
Y -Available
N -Not available

InteliLite NT AMF 8 Controller/Function

Voltage supply 8-36V DC
Operating temperature IL-NT -20 to 70°C
Operating temperature IL-NT LT# -40 to 70°C
Nominal frequency 50-60 Hz
Nominal input current (from CT) 5 A
Number of Binary inputs 4
Number of Binary outputs 6
Not electrically separated
Number of inputs
3
Galvanically separated
Maximal CAN bus length
200m
Dimensions 180x120x55mm
Weight 450g

» InteliLite NT AMF 8 Product Leaflet
  • InteliLite NT AMF 8 Gen-Set Controller
    Art. nr.
    GSC20
    InteliLite NT AMF 8 Gen-Set Controller
