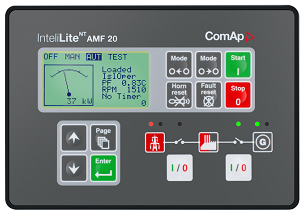

InteliLite NT AMF 20 Gen-Set Controller


InteliLite NT AMF 20 Gen-Set Controller


InteliLite NT AMF 20 Gen-Set Controller
Auto Mains Failure (AMF) Gen-set Controller

Features
Compact gen-set controller for single genset operating in standby mode Meets all requirements for Auto Mains Failure (AMF) applications
Full gen-set monitoring and protection
Running hours event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in extension modules capability
WebSupervisor, AirGate and LOCATE support*
Automatic SMS on alarm or event & gen-set control over SMS*
On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite
Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
Fuel theft protection
Earth fault current protection*
Alternative switchable configuration
Supports prime power (MRS) applications
Automatic and manual GCB and MCB control
Magnetic pickup input
D+ preexcitation terminal
True RMS measurement
3 phase power measurement of gen-set and mains incl. kWh
3 configurable analog inputs
7 binary inputs
7 binary outputs

 * Plug-in module required



Technical Data
Power Supply Range 8 – 36 VDC
Operating temperature -20°C to 70°C
Measurement inputs 3ph-n Gen voltage
3ph-n Mains
Measurement
range
5 A
Max. allowed current 10 A
Binary inputs  7, non-isolated
Binary outputs 2 high current output, non-isolated, 5 low current output, non-isolated
Analog inputs 3 non-isolated
USB port Non-isolated



» InteliLite AMF 20 Product Leaflet

» InteliLite AMF 20 Reference Manual

» AMF 20-25 Schematic Diagram

  • InteliLite NT AMF 20 Gen-Set Controller
    Art. nr.
    GSC14
    InteliLite NT AMF 20 Gen-Set Controller
