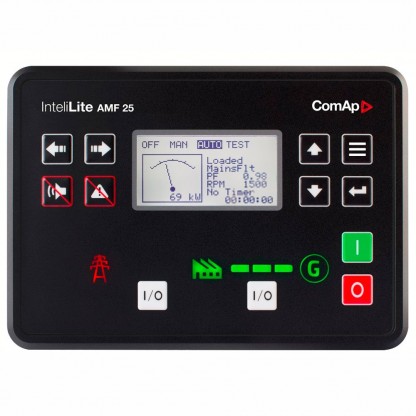

InteliLite AMF 25 Gen-Set Controller




InteliLite AMF 25 Gen-Set Controller
Auto Mains Failure (AMF) next generation Gen-set Controller

Specification
Single gen-set controller for stand-by and prime power applications

Features
  • Direct communication with EFI engines
  • Total remote monitoring and control
  • Easy to install, configure and use
  • Wide range of communication capabilities including:
  • Connection via RS232, RS485, CAN and on board USB
  • Internet access using Ethernet, GPRS or 4G
  • Support for Modbus and SNMP protocols
  • Internal PLC support with PLC editor and monitor included in LiteEdit
  • Cloud-based monitoring and control via WebSupervisor
  • Active SMS and emails in different languages
  • SNMP traps
  • Geofencing and tracking via WebSupervisor
  • 2× 10 A binary outputs for cranking and fuel solenoid
  • Option for up to 16 additional binary inputs/outputs
  • Flexible event based history with up to 350 events
  • Load shedding, dummy load capability
  • Tier 4 final support
  • Automatic temperature based cooling/heating
  • Comprehensive gen-set protections
  • Multipurpose flexible timers
  • True RMS measurement
  • Available also in low temperature (LT) version

Technical Data

Binary inputs/outputs  7/7
Analog inputs 3
Pick-up
AMF function
Input configuration
Output configuration
Voltage measurement Gen./Mains 3ph / 3ph
Current measurement 3ph, IDMT overcurrent
kW/kWh measurement • / -
GCB/MCB control with feedback • / •
Extension units
(periph.)
IGL-RA15, IG-IOM,
IGS-PTM
Communication interfaces RS232, CAN3)
Modem support
Battery charging alternator circuit

    Notera:

    Key: • included; - excluded
    1) GCB control, but without feedback
    2) For IL-AMF 20, IL-MRS 10/11
    AT-LINK CONV cable necessary
    3) CAN for periph.

    Legend: IG-IOM/IGS-PTM: I/O extension modules
    IGL-RA15: Remote annunciator
    I-RD: Remote display

    » InteliLite AMF 25 Product Leaflet

    » AMF 20-25 Schematic Diagram


    • InteliLite AMF 25 Gen-Set Controller
      Art. nr.
      GSC07
      InteliLite AMF 25 Gen-Set Controller
