InteliGen NTC BaseBox Gen-Set Controller
InteliGen NTC BaseBox Gen-Set Controller
Specification
Complex Parallel Gen-set Controller with Detachable Colour Display InteliGen NTC BaseBox is a comprehensive gen-set controller for both single and multiple gensets operating in standby or paralleling modes.
The detachable modular construction allows easy installation with the potential for many different extension modules designed to suit individual customer requirements.
Features
To be used in conjunction with detachable colour displays InteliVision 5 or InteliVision 8 Support of engines with ECU (Electronic Control Unit)
Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
Many communication options – easy remote supervising and servicing
AirGate support, Ethernet connection (RJ45), USB 2.0 slave interface, 1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; ECU Modbus interface; secondary RS485 converter is isolated
Automatic synchronizing and power control (via speed governor or ECU)
AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
Mains measurement: U, I, Hz, kW, kVAr, PF
Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
Inputs and outputs configurable for various customer needs
Bipolar binary outputs - possibility to use BO as High or Low side switch
Controller redundancy
Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections
DIN-Rail mount
Customized firmware solution

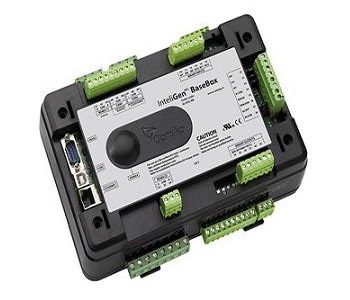

» Click here to see image
» InteliGen NTC BaseBox Datasheet
Specification
Complex Parallel Gen-set Controller with Detachable Colour Display InteliGen NTC BaseBox is a comprehensive gen-set controller for both single and multiple gensets operating in standby or paralleling modes.
The detachable modular construction allows easy installation with the potential for many different extension modules designed to suit individual customer requirements.
Features
To be used in conjunction with detachable colour displays InteliVision 5 or InteliVision 8 Support of engines with ECU (Electronic Control Unit)
Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
Many communication options – easy remote supervising and servicing
AirGate support, Ethernet connection (RJ45), USB 2.0 slave interface, 1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; ECU Modbus interface; secondary RS485 converter is isolated
Automatic synchronizing and power control (via speed governor or ECU)
AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
Mains measurement: U, I, Hz, kW, kVAr, PF
Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
Inputs and outputs configurable for various customer needs
Bipolar binary outputs - possibility to use BO as High or Low side switch
Controller redundancy
Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections
DIN-Rail mount
Customized firmware solution
» Click here to see image
| InteliGen NTC BaseBox | |
| Voltage supply | 8 to 36 VDC |
| Operating temperature | - 40°C to 70°C |
| Storage temperature | - 40°C to 80°C |
| Voltage Measurement inputs | 3 ph-n Gen voltage 3 ph-n Mains/Bus voltage |
| Voltage Measurement range | 110V / 277V |
| Max allowed voltage | 125 % |
| Number of Binary outputs | 4 |
| Current Measurement inputs | 3 ph Gen current 1 ph Mains current |
| Current Measurement range | 1A / 5A |
| Binary Inputs Number | 12 non-isolated |
| Binary outputs Number | 12 non-isolated |
| Analog inputs Number | 3 non-isolated |
| Communications | |
| RS232 | Direct/Modbus, non-isolated |
| RS485 | Direct/Modbus, isolated |
| Display port | non-isolated RS485, only terminal connection |
| USB port | Direct, isolated |
| Ethernet port | LAN/Internet, Modbus TCP, SNMP, WebServer, AirGate |
| CAN1 | External modules 250 kbps, max 200 m, Isolated |
| CAN2 | Intercontroller and comm extensions 250 / 50 kbps, max 200 / 1000 m, Isolated |
» InteliGen NTC BaseBox Datasheet
