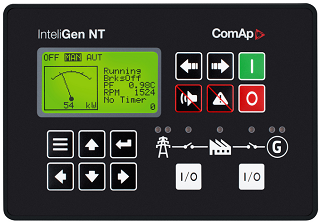

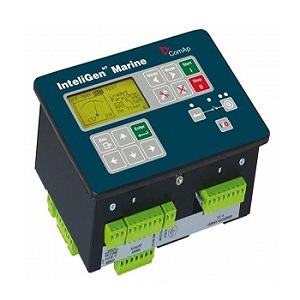

InteliGen NT Marine Gen-Set Controller

InteliGen NT Marine Gen-Set Controller Marine certified gen-set controller for single or multiple generating sets operating in standby or parallel modes Approved by DNV, GL, LR and CRS Registers
Support of engines with ECU (Electronic Control Unit)
Many communication options – easy remote supervising and servicing
Gen-set performance log for easy problem tracing
Automatic synchronizing and power control (via speed governor or ECU)
AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
Generator measurement, Mains measurement
Inputs and outputs configurable for various customer needs
Controller redundancy
Event-based history (up to 500 records) with customer-selectable list of stored values; RTC; statistic values
Integrated PLC programmable functionsIntegrated fixed and configurable protections
Various HW modifications

InteliGen NT Marine Controller/Function
Voltage supply	8-36V DC
Operating temperature	- 40°C to + 70°C
Storage temperature	- 40°C to + 80°C
Voltage Measurement inputs	3 ph-n Gen voltage 3 ph-n Mains/Bus voltage
Voltage Measurement range	277 V
Current Measurement inputs	3 ph Gen current 1 ph Neutral/Mains current
Current Measurement range	5 A
Binary inputs Number	12 non-isolated
Binary outputs Number	12 non-isolated
Analog inputs Number	3 non-isolated
Magnetic pick-up Voltage input range	2 Vpk-pk to 50 Veff
Voltage regulator output type	5 V TTL PWM / ± 10 VDC with IG-AVRi interface
Voltage output	± 10 VDC / max.15 mA
PWM	500÷3000 Hz / 5V / max. 10mA
Communication
RS232	Direct/Modbus, non-isolated
Display port	non-isolated RS485, terminal connection, multipurpose RS485
CAN1	External modules 250 kbps, max 200 m, Isolated
CAN2	Intercontroller and comm extensions 250 / 50 kbps, max 200 / 1000 m, Isolated
