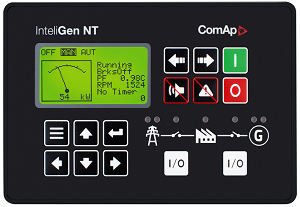

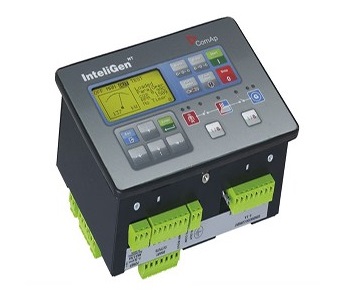

InteliGen NT® Gen-Set Controller


InteliGen NT®  Gen-Set Controller


InteliGen NT®  Complex parallel Gen-set controller

Features
Gen-set controller for single or multiple generating sets operating in standby or parallel modes
Support of engines with ECU (Electronic Control Unit)
Many communication options – easy remote supervising and servicing
Gen-set performance log for easy problem tracing
Automatic synchronizing and power control (via speed governor or ECU)
AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
Generator measurement, Mains measurement
Inputs and outputs configurable for various customer needs
Controller redundancy
Event-based history (up to 500 records) with customer-selectable list of stored values; RTC; statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections
Various HW modifications


InteliGen NT® Function/Controller
Order code IG-NT
Binary Inputs / Outputs 12/12 (108/108)1)
Analog Inputs/Outputs 3/0 (83/32)1)
(confi gurable as tristate)
AMF function
GCB control with feedback
Integrated PLC Standard
Input confi guration
Output confi guration
Voltage measurement
Gen / Mains (bus)
3 ph / 3 ph
277V
Current measurement 3ph + 1 / 6w IDMT
overcurrent 5A
kW / kWh / kVA measurement •/•/•
Communication interfaces CAN1, CAN2, RS232, RS485, Ethernet2), Modbus
ECU support
Active call / SMS support
Forward / Reverse synchronizing/
Mains parallel operation
•/•/•
Multiple operation /
Power Management System
•/3)
Display LCD 128×64
History (max records)4) 500

» InteliGen_NT_Datasheet
  • InteliGen NT<sup>® </sup> Gen-Set Controller
    Art. nr.
    GSC33
    InteliGen NT® Gen-Set Controller
