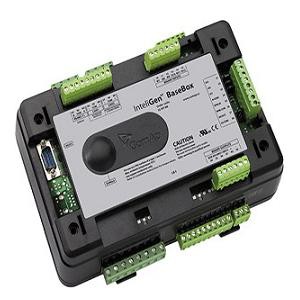

InteliGen NT BaseBox Gen-Set Controller
InteliGen NT BaseBox Gen-Set Controller
InteliGen NT BaseBox is a controller for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this controller will ensure secure remote monitoring of your critical infrastructure installations such as datacentres, hospitals or banks.
Ground Power Unit (GPU)
Comprehensive gen-set controller for land aircraft operating at 400 Hz frequency (GPU-Ground Power Units)
Synchronizing and power management functions
Island operation, based on standard MINT application
To be used indenpendently or in conjunction with detachable/external colour displays InteliVision 5, InteliVision 8, InteliVision 12Touch, or InteliVision 18Touch
Support of engines with ECU (Electronic Control Unit)
Many communication options – easy remote supervising and servicing
Gen-set performance log for easy problem tracing
Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
Mains measurement: U, I, Hz, kW, kVAr, PF
Inputs and outputs configurable for various customer needs
True RMS (TRMS) is used with Voltage, Current and Power measurement
RS232 / RS485 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface
Event-based history (up to 1000 records) with customer-selectable list of stored values
Integrated PLC programmable functions
Integrated fixed and configurable protections
DIN-Rail mount
Customized firmware solution
Version with extended communication features (NTC version) is available upon request
» InteliGen NT BaseBox Datasheet Product Leaflet
