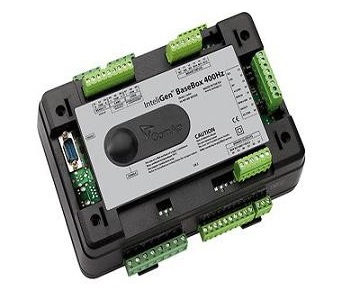

InteliGen NT BaseBox 400Hz Gen-Set Controller


InteliGen NT BaseBox 400Hz Gen-Set Controller


InteliGen NT BaseBox 400Hz Gen-Set Controller

Ground Power Unit (GPU)
Comprehensive gen-set controller for land aircraft operating at 400 Hz frequency (GPU-Ground Power Units)
Synchronizing and power management functions
Island operation, based on standard MINT application
To be used in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8, or InteliVision 18Touch
Support of engines with ECU (Electronic Control Unit)
Many communication options – easy remote supervising and servicing
Gen-set performance log for easy problem tracing
Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
True RMS (TRMS) is used with Voltage, Current and Power measurement
Inputs and outputs configurable for various customer needs
RS232 / RS485 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface
Event-based history (up to 1000 records) with customer-selectable list of stored values
Integrated PLC programmable functions
Integrated fixed and configurable protections
DIN-Rail mount
Customized firmware solution
Version with extended communication features (NTC version) is available upon request

InteliGen NT BaseBox 400Hz  Controller/Function

Order code IG-NT-BB
Binary Inputs / Outputs 12/12 (108/108)1
Analog Inputs/Outputs 3/0 (83/32)1)
(confi gurable as tristate)
AMF function
GCB control with feedback
Integrated PLC Standard
Input confi guration
Output confi guration
Voltage measurement
Gen / Mains (bus)
3 ph / 3 ph
277V
Current measurement 3ph + 1 / 6w IDMT
overcurrent 5A
kW / kWh / kVA measurement •/•/•
Communication interfaces CAN1, CAN2, RS232, RS485,
Ethernet2), Modbus
ECU support
Active call / SMS support
Forward / Reverse synchronizing/
Mains parallel operation
•/•/•
Multiple operation /
Power Management System
•/3)
Display External
History (max records)4) 1000

» Click here to see image

» InteliGen NT BaseBox 400Hz Prodct Leaflet

» InteliGen NT BaseBox 400Hz New Features
  • InteliGen NT BaseBox 400Hz Gen-Set Controller
    Art. nr.
    GSC31
    InteliGen NT BaseBox 400Hz Gen-Set Controller
