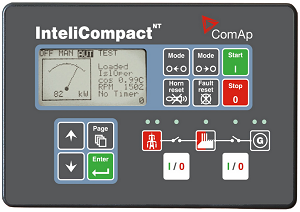

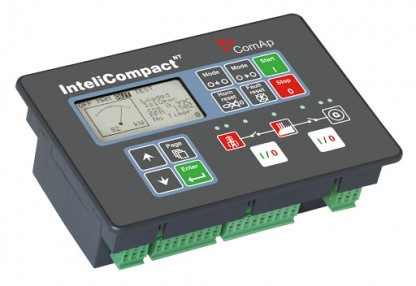

InteliCompact NT SPTM Gen-Set Controller


InteliCompact NT SPTM Gen-Set Controller


InteliCompact NT SPTM Gen-Set Controller
Gen-set Controller for Gensets in Parallel to Mains Applications

Features
Compact genset controller for single genset operating in parallel to mains mode or Auto Mains Failure (AMF) mode with no-break transfers
Meets all requirements for AMF applications
Forward and reverse synchronizing
Peak shaving, Peak lopping
Load, speed, voltage and power factor control
High tariff avoidance
Mains import/export
Full gen-set monitoring and protection
Possibility to connect up to 8 gauges to display engine values
True voltage and current RMS measurement
Outstanding EFI engine support (CAN/J1939, RS232/Modbus) with diagnostic messages in plain text
3 phase generator voltage and current measurement
3 phase mains voltage measurement
3 phase power measurement
1 phase mains current measurement
Additional 7 binary inputs/outputs via IC-NT CT-BIO7 (in total up to 16 inputs/15 outputs)
3 analog inputs
RS232, RS485, USB, Modbus, GSM/Analog Modem, Internet communication
GPRS communication and IC-NT RD (remote display) software
AirGate and WebSupervisor support
Support of active SMS Events or Commands
Event and performance log
2 languages (user changeable)
IC-NT CT-BIO7 extension plug-in module included



InteliCompact NT SPtM Controller/Function
Power supply range 8-36V DC
Operating temperature -20 to -70 °C
Operating temperature (LT
version)
-40 to -70 °C
Protection degree (front
panel)
IP65
Measurement inputs 3 ph generator voltage
3 ph mains voltage
Voltage range 480 V Ph-Ph (277 V Ph-N)
Max. measured voltage 340 V Ph-N
Measurement inputs 3ph generator current
Current range 5 A
Max. measured current 9 A
Number of Binary input 9 non-isolated
Number of Binary output 8 non-isolated
Number of Analog Input 3 non-isolated
Communication CAN1, CAN 2
Display type Built-in monochromatic
Resolution 128x64

    » InteliLite NT SPtM Product LeafLet

    • InteliCompact NT SPTM Gen-Set Controller
      Art. nr.
      GSC24
      InteliCompact NT SPTM Gen-Set Controller
