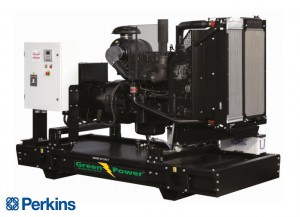

GREENPOWER Perkins Diesel Power generator 300kVA 240kW Open frame Manual starting




greenpower

Greenpower Equipped with water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.

Specification
  • Prime running power (PRP) 300kVA, 240kW
  • Emergency stand by power (ESP) 330kVA, 264 kW
  • 400/230 V @ 50 Hz 1500 rpm
  • High quality and reliable 6-cylinder Perkins diesel engine
  • Easily operated control panel
  • Brushless permanent magnetized generator IP23 with optional electronic AVR
  • Fuel tank 250 liters with leak protection

» Click Here to view the Engine Datasheet

» Click here to see Datasheets

    Technical Data
    Generator Engine  Perkins 1506A-E88TAG5
    Type 4 cycle, water-cooled, diesel engine
    Compression Ratio 16.1:1
    No of Cylinders 6
    Cylinders Arrangement In-line
    Displacement 8.8 Liters
    Bore x Stroke 112 x 149 mm
    Prime running power (PRP) 300 kVA/240 kW
    Emergency stand by power (ESP)  330 kVA/264 kW
    Speed 1500 rpm
    Governor Electronic
    Fuel Consumption 48 liter/hour
    Rated Current 630 Amps
    Rated Voltage 400V/230V
    Landuse Type of Unit Low Noise, Automation Type
    Weight 2500 Kg
    Dimension (LxBxH) 2800 x 1310 x 1800 mm
    Rotation Anti-clockwise
    Fuel tank 250liter with leakage protection
    Standard tank capacity 250 l
    Current 433A
    Sound level 69dB (A)
    Frequency 50Hz


     Standard equipment  Other configurations
    • Air inlet system
    • Automatic fuse magnetothermal
    • Control system
    • Cooling system
    • Fly wheel and flywheel housing
    • Emergency stop button
    • Fuel system
    •  Safety device in the engine for:
      • high water temperature
      • low oil pressure
      • low fuel level
      • battery charging error
    • Models with different voltage
    • 60 Hz version

     Accessories

    •  Mobile drive wheel
    • Type-approved trailer
    • Autostart
    • Automatic power switch ATS
    • Automatic power switch and phase-out
    • Blink-free feedback
    • Parallel operation
    • Fuse type
    • Ground fault switch
    • Extraction point with power transformer input point
    • Radiostatic protection VDE 0875 curve N
    • Electronic speed control
    • Oil heater
    • Engine heater
    • Oil pump
    • Automatic tanker from external tank
    • Protective frame with lift hook
    • Container unit
    • Alternator voltage / frequency generator
    • Fuel tank deployment
    • Fuel level
    • Alarm on all internet connection.
    • GSM alarm monitoring
    • Capable soundproofing 70dB down to 55dB
    • Remote control
    • Environmental Class STAGE III
    • Disconnect 1-phase or 3-phase, respectively
    • UPS system battery backup 1-phase and 3-phase
      Standard Genset Specifications

      Engine
      • Perkins heavy duty diesel engine
      • 6 cylinder equipped with Water cooling
      • Mechanical governor control system
      • Replaceable wet type cylinder liners
      • Replaceable fuel filter, oil filter and dry element air filter
      • Cooling radiator and fan
      • Fuel connection hoses and manual sump oil drain valve
      • Exhaust silencer
      • Maintenance free battery including rack and cables
      • Jacket water heater (as option)
      • Perkins Engine Manual
        Alternator
        • Brushless, single bearing system
        • Insulation class H with circuit breaker protection
        • Standard degree of protection IP 23
        • Self-exciting and self-regulating
        • Main line circuit breaker
        • Close voltage regulation

        Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
