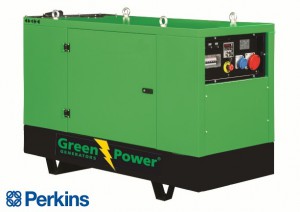

GREENPOWER Perkins Diesel Power generator 230kVA 184kW Soundproof canopy Manual starting




greenpower
Greenpower Equipped with a water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.

Specification

  • Prime running power (PRP) 230kVA, 184kW
  • Emergency stand by power (ESP) 253kVA, 202 kW
  • 400/230 V @ 50 Hz 1500 rpm
  • High quality and reliable 6-cylinder Perkins diesel engine
  • Easily operated control panel
  • Brushless permanent magnetized generator IP23 with optional electronic AVR
  • Fuel tank 250 liters with leak protection

» Click Here to view the Engine Datasheet

» Click here to see Datasheet

    Technical Data
    Generator Engine  Perkins 1506A-E88TAG2
    Type 4 cycle, water-cooled, diesel engine
    Compression Ratio 16.1:1
    No of Cylinders 6
    Cylinders Arrangement In-line
    Displacement 8.8 Liters
    Bore x Stroke 112 x 149 mm
    Prime running power (PRP) 230 kVA/184 kW
    Emergency stand by power (ESP) 253 kVA/202 kW
    Speed 1500 rpm
    Governor Electronic
    Fuel Consumption 36 liter/hour
    Rated Current 400 Amps
    Rated Voltage 400V/230V
    Landuse Type of Unit Low Noise, Automation Type
    Weight 2900 Kg
    Dimension (LxBxH) 3700 x 1450 x 2250 mm
    Rotation Anti-clockwise
    Fuel tank 250liter with leakage protection
    Current 332A
    Standard tank capacity 250liter
    Sound level 69dB (A)
    Frequency 50Hz
    Motor power 275/205 (hp/kW)


    General Specification for silent Generator :
    • Modular Design
    • Anti Corrosion powder coated
    • Insulated with acoustic foam lining
    • Central lifting ring, exhaust pipe can be removed, which is easy to transport
    • Lockable doors with key
    • Protective mesh for rotating parts
    • Exterior emergency stop push button
    • Thermally insulated engine exhaust system
    • Doors fitted on each side
    • Panel observing window
    • Access to the radiator fill or cap
    • Color is optional
    • Fuel gauge or lube drain valve is optional
    • Normal or super soundproof canopy is optional
    • Base frame fuel tank or profile fuel tank is optional
    • The muffler fixed position depend on the output power of the Gen-set

    Silent Generator set Canopy :

    • Specially treated steel sheet
    • Stainless steel locks
    • Control panel viewing window for monitoring the status of the generator set
    • Good ventilation system and anti-heat radiation saturation
    • Effective anti-vibration devices to ensure generator driven steadily
    • Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
    • Emergency stop button mounted outside
    • Side lockable door easy for maintenance and installation
    • Lube oil and cooling water drain pipe to the exterior of the canopy
    • Fuel tank built with level indicator
     Standard equipment  Other configurations
    • Air inlet system
    • Automatic fuse magnetothermal
    • Control system
    • Cooling system
    • Fly wheel and flywheel housing
    • Emergency stop button
    • Fuel system
    •  Safety device in the engine for:
      • high water temperature
      • low oil pressure
      • low fuel level
      • battery charging error
    • Models with different voltage
    • 60 Hz version

     Accessories

    • Mobile drive wheel
    • Type-approved trailer
    • Autostart
    • Automatic power switch ATS
    • Automatic power switch and phase-out
    • Blink-free feedback
    • Parallel operation
    • Fuse type
    • Ground fault switch
    • Extraction point with power transformer input point
    • Radiostatic protection VDE 0875 curve N
    • Electronic speed control
    • Oil heater
    • Engine heater
    • Oil pump
    • Automatic tanker from external tank
    • Protective frame with lift hook
    • Container unit
    • Alternator voltage / frequency generator
    • Fuel tank deployment
    • Fuel level
    • Alarm on all internet connection.
    • GSM alarm monitoring
    • Capable soundproofing 70dB down to 55dB
    • Remote control
    • Environmental Class STAGE III
    • Disconnect 1-phase or 3-phase, respectively
    • UPS system battery backup 1-phase and 3-phase
    Standard Genset Specifications

    Engine
    • Perkins heavy duty diesel engine
    • 6 cylinder equipped with Water cooling
    • Mechanical governor control system
    • Replaceable wet type cylinder liners
    • Replaceable fuel filter, oil filter and dry element air filter
    • Cooling radiator and fan
    • Fuel connection hoses and manual sump oil drain valve
    • Exhaust silencer
    • Maintenance free battery including rack and cables
    • Jacket water heater (as option)
    • Perkins Engine Manual
       Alternator
      • Brushless, single bearing system
      • Insulation class H with circuit breaker protection
      • Standard degree of protection IP 23
      • Self-exciting and self-regulating
      • Main line circuit breaker
      • Close voltage regulation

      Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
