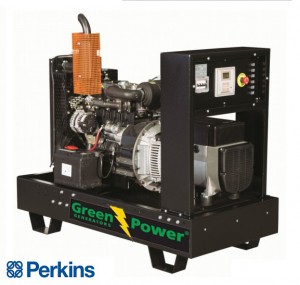

GREENPOWER Perkins Diesel Power generator 20kVA 16kW Open frame Manual starting




greenpower

GreenPower with water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.

Specification

  • Prime running power (PRP) 20kVA, 16kW
  • Emergency stand by power (ESP) 22kVA, 17.6 kW
  • 400/230 V @ 50 Hz 1500 rpm
  • High quality and reliable 4-cylinder Perkins diesel engine
  • Easily operated control panel
  • Brushless permanent magnetized generator IP22 with optional electronic AVR
  • Fuel tank 50 liters with leakage protection

» Click Here to view the Engine Datasheet

» Click here to see Datasheet

    Technical Data
    Generator Engine   Perkins 404A-22G1
    Type 4 cycle, water-cooled, diesel engine
    Compression Ratio 23.3:1
    No of Cylinders 4
    Cylinders Arrangement In-line
    Displacement 2.2 Liters
    Bore x Stroke 84 x 100 mm
    Prime running power (PRP) 20 kVA/16 kW
    Emergency stand by power (ESP) 22 kVA/17.6 kw
    Speed 1500 rpm
    Mechanical output 18-20 kWm
    Fuel Consumption 4 liter/hour
    Rated Current 32 Amps
    Rated Voltage 400V/230V
    Landuse Type of Unit Low Noise, Automation Type
    Weight 495 Kg
    Dimension (LxBxH) 1400 x 700 x 1400 mm
    Rotation Anti-clockwise
    Sound level 68dB (A)
    Standard tank capacity 50 l
    Frequency 50Hz
    Fuel tank 55liter with leakage protection
    Motor power 24.7/18.4 (hp/kW)

     Standard equipment  Other configurations
    • Air inlet system
    • Automatic fuse magnetothermal
    • Control system
    • Cooling system
    • Voltmeter
    • Ammeter
    • Hour meter
    • Fly wheel and flywheel housing
    • Emergency stop button
    • Fuel system
    • Safety device in the engine for:
      • high water temperature
      • low oil pressure
      • low fuel level
      • battery charging error
      • Terminal connection terminal block
    • Models with different voltage
    • 60 Hz version

     Accessories

    • Mobile drive wheel
    • Type-approved trailer
    • Autostart
    • Automatic power switch ATS
    • Automatic power switch and phase-out
    • Blink-free feedback
    • Parallel operation
    • Fuse type
    • Ground fault switch
    • Extraction point with power transformer input point
    • Radiostatic protection VDE 0875 curve N
    • Electronic speed control
    • Oil heater
    • Engine heater
    • Oil pump
    • Automatic tanker from external tank
    • Protective frame with lift hook
    • Container unit
    • Alternator voltage / frequency generator
    • Fuel tank deployment
    • Fuel level
    • Alarm on all internet connection.
    • GSM alarm monitoring
    • Capable soundproofing 70dB down to 55dB
    • Remote control
    • Environmental Class STAGE III
    • Disconnect 1-phase or 3-phase, respectively
    • UPS system battery backup 1-phase and 3-phase
    Standard Genset Specifications

    Engine
    • Perkins heavy duty diesel engine
    • 4 cylinder equipped with Water cooling
    • Mechanical governor control system
    • Replaceable wet type cylinder liners
    • Replaceable fuel filter, oil filter and dry element air filter
    • Cooling radiator and fan
    • Fuel connection hoses and manual sump oil drain valve
    • Exhaust silencer
    • Maintenance free battery including rack and cables
    • Jacket water heater (as option)
    • Perkins Engine Manual
    Alternator
    • Brushless, single bearing system
    • Insulation class H with circuit breaker protection
    • Standard degree of protection IP 23
    • Self-exciting and self-regulating
    • Main line ciucuit breaker
    • Close voltage regulation

    Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
