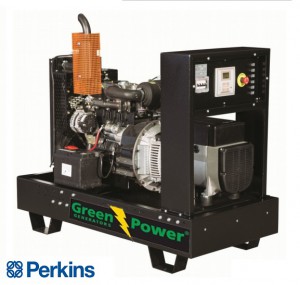

GREENPOWER Perkins Diesel Power generator 14kVA 11.2kW Open frame Automatic starting




greenpower

Greenpower Equipped with a water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. We also supply the silenced version as an option.

Specification

  • Prime running power (PRP) 14kVA, 11.2kW
  • Emergency stand by power (ESP) 15.4kVA, 12.3 kW
  • 400/230 V @ 50 Hz 1500 rpm
  • High quality and reliable 3-cylinder Perkins diesel engine
  • Easy to operate control panel
  • Brushless permanent magnetized generator IP23 with optional electronic AVR
  • Fuel tank 50 liters with leakage protection

» Click Here to view the Engine Datasheet

» Click here to see Datasheet

Technical Data
Generator Engine   Perkins 403A-15G1
Type 4 cycle, water-cooled, diesel engine
Compression Ratio 22.5:1
No of Cylinders 3
Cylinders Arrangement In-line
Displacement 1.49 Liters
Bore x Stroke 84 x 90 mm
Prime running power (PRP) 14 kVA/11.2 kW
Emergency stand by power (ESP) 15.4 kVA/12.3 kw
Speed 1500 rpm
Mechanical output 12-17 kWm
Fuel Consumption 2.8 liter/hour
Rated Current 25 Amps
Rated Voltage 400V/230V
Landuse Type of Unit Low Noise, Automation Type
Weight 420 Kg
Dimension (LxBxH) 1400x700x1400 mm
Rotation Anti-clockwise
Fuel tank 50liter with leakage protection
Current 20A
Motor power 16.1/12 (hp/kW)
Standard tank capcaity 50 l
Sound level 68dB (A)
Frequency 50Hz


 Standard equipment  Other configurations
  • Air inlet system
  • Automatic fuse magnetothermal
  • Autostart
  • Automatic power switch ATS
  • Automatic power switch and phase-out
  • Control system
  • Cooling system
  • Fly wheel and flywheel housing
  • Emergency stop button
  • Fuel system
  • Safety device in the engine for:
    • high water temperature
    • low oil pressure
    • low fuel level
    • battery charging error
  • Models with different voltage
  • 60 Hz version

 Accessories

  • Mobile drive wheel
  • Type-approved trailer
  • Blink-free feedback
  • Parallel operation
  • Fuse type
  • Ground fault switch
  • Extraction point with power transformer input point
  • Radiostatic protection VDE 0875 curve N
  • Electronic speed control
  • Oil heater
  • Engine heater
  • Oil pump
  • Automatic tanker from external tank
  • Protective frame with lift hook
  • Container unit
  • Alternator voltage / frequency generator
  • Fuel tank deployment
  • Fuel level
  • Alarm on all internet connection.
  • GSM alarm monitoring
  • Capable soundproofing 70dB down to 55dB
  • Remote control
  • Environmental Class STAGE III
  • Disconnect 1-phase or 3-phase, respectively
  • UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications

Engine
  • Perkins heavy duty diesel engine
  • Three cylinder equipped with Water cooling
  • Mechanical governor control system
  • Replaceable wet type cylinder liners
  • Replaceable fuel filter, oil filter and dry element air filter
  • Cooling radiator and fan
  • Fuel connection hoses and manual sump oil drain valve
  • Exhaust silencer
  • Maintenance free battery including rack and cables
  • Jacket water heater (as option)
  • Perkins Engine Manual
Alternator
  • Brushless, single bearing system
  • Insulation class H with circuit breaker protection
  • Standard degree of protection IP 23
  • Self-exciting and self-regulating
  • Main line circuit breaker
  • Close voltage regulation

Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
