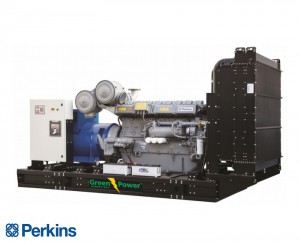

GREENPOWER Perkins Diesel Power generator 1360kVA 1088kW Open frame Manual starting




greenpower

Greenpower Equipped with a water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.

Specification

  • Prime running power (PRP) 1360kVA, 1088kW.
  • Emergency stand by power (ESP) 1496kVA, 1196.8kW.
  • 400/230 V @ 50 Hz 1500 rpm.
  • High quality and reliable 12-cylinder Perkins diesel engine.
  • Easily operated control panel.
  • Brushless permanent magnetized generator IP23 with optional electronic AVR
  • 400 liter fuel tank with leakage protection
» Click Here to view the Engine Datasheet

» Click here to see Datasheet


Technical Data
Generator Engine  Perkins 4012-46TWG3A
Type 4 cycle, water-cooled, diesel engine
Compression Ratio 13.6:1
No of Cylinders 12
Cylinders Arrangement In-line
Displacement 45.84 Liters
Bore x Stroke 160 x 190 mm
Prime running power (PRP)  1360 kVA/1088 kW
Emergency stand by power (ESP) 1496 kVA/1196.8 kW
Speed 1500 rpm
Governor Electronic
Fuel Consumption 213 liter/hour
Rated Current 2000 Amps
Rated Voltage 400V/230V
Landuse Type of Unit Low Noise, Automation Type
Weight 10500 Kg
Rotation Anti-clockwise
Dimension (LxBxH) 4900x2100x2400 mm
 Fuel tank 400liter med läckageskydd
Standard tank capacity 400 l
Current 1963A
Sound level 70dB (A)
Frequency 50Hz
Motor power
1540/1149 (hp/kW)


 Standard equipment  Other configurations
  • Air inlet system
  • Automatic fuse magnetothermal
  • Control system
  • Cooling system
  • Fly wheel and flywheel housing
  • Emergency stop button
  • Fuel system
  •  Safety device in the engine for:
    • high water temperature
    • low oil pressure
    • low fuel level
    • battery charging error
  • Models with different voltage
  • 60 Hz version

 Accessories

  • Mobile drive wheel
  • Type-approved trailer
  • Autostart
  • Automatic power switch ATS
  • Automatic power switch and phase-out
  • Blink-free feedback
  • Parallel operation
  • Fuse type
  • Ground fault switch
  • Extraction point with power transformer input point
  • Radiostatic protection VDE 0875 curve N
  • Electronic speed control
  • Oil heater
  • Engine heater
  • Oil pump
  • Automatic tanker from external tank
  • Protective frame with lift hook
  • Container unit
  • Alternator voltage / frequency generator
  • Fuel tank deployment
  • Fuel level
  • Alarm on all internet connection.
  • GSM alarm monitoring
  • Capable soundproofing 70dB down to 55dB
  • Remote control
  • Environmental Class STAGE III
  • Disconnect 1-phase or 3-phase, respectively
  • UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications

Engine
  • Perkins heavy duty diesel engine
  • 12 cylinder equipped with Water cooling
  • Mechanical governor control system
  • Replaceable wet type cylinder liners
  • Replaceable fuel filter, oil filter and dry element air filter
  • Cooling radiator and fan
  • Fuel connection hoses and manual sump oil drain valve
  • Exhaust silencer
  • Maintenance free battery including rack and cables
  • Jacket water heater (as option)
  • Perkins Engine Manual
    Alternator
    • Brushless, single bearing system
    • Insulation class H with circuit breaker protection
    • Standard degree of protection IP 23
    • Self-exciting and self-regulating
    • Main line circuit breaker
    • Close voltage regulation
    Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
