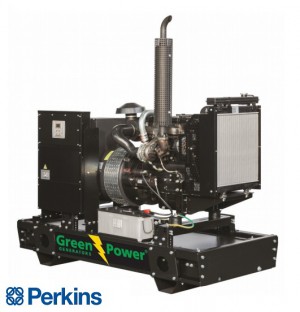

GREENPOWER Perkins Diesel Power generator 100kVA 80kW Open frame Manual starting




greenpower

Greenpower Equipped with water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.

Specification

  • Prime running power (PRP)100kVA, 80kW
  • Emergency stand by power (ESP)  110kVA, 88 kW
  • 400/230 V @ 50 Hz 1500 rpm
  • High quality and reliable 4-cylinder Perkins diesel engine
  • Easily operated control panel
  • Brushless permanent magnetized generator IP23 with optional electronic AVR
  • Fuel tank 120 liters with leakage protection

» Click here to view the Engine Datasheet

» Click here to see Datasheet

    Technical Data
    Generator Engine   Perkins 1104C-44TAG2
    Type 4 cycle, water-cooled, diesel engine
    Compression Ratio 18.2:1
    No of Cylinders 4
    Cylinders Arrangement In-line
    Displacement 4.4 Liters
    Bore x Stroke 105 x 127 mm
    Prime running power (PRP) 100 kVA/80 kW
    Emergency stand by power (ESP)  110kVA/88 kW
    Speed 1500 rpm
    Mechanical output 72-112 kWm
    Fuel Consumption 17,1 liter/hour
    Rated Current 160 Amps
    Rated Voltage 400V/230V
    Landuse Type of Unit Low Noise, Automation Type
    Weight 1135 Kg
    Dimension (LxBxH) 2100x1000x1800 mm
    Rotation Anti-clockwise
    Engine power 120.8 / 90.1 (hp / kW)
    Standard tank capacity 120 l
    Current 144A
    Sound level 69dB (A)
    Frequency 50Hz


     Standard equipment  Other configurations
    • Air inlet system
    • Automatic fuse magnetothermal
    • Control system
    • Cooling system
    • Fly wheel and flywheel housing
    • Emergency stop button
    • Fuel tank 120 liters with leakage protection
    •  Safety device in the engine for:
      • high water temperature
      • low oil pressure
      • low fuel level
      • battery charging error
    • Models with different voltage
    • 50 Hz version

     Accessories

    • Mobile drive wheel
    • Type-approved trailer
    • Autostart
    • Automatic power switch ATS
    • Automatic power switch and phase-out
    • Blink-free feedback
    • Parallel operation
    • Fuse type
    • Ground fault switch
    • Extraction point with power transformer input point
    • Radiostatic protection VDE 0875 curve N
    • Electronic speed control
    • Oil heater
    • Engine heater
    • Oil pump
    • Automatic tanker from external tank
    • Protective frame with lift hook
    • Container unit
    • Alternator voltage / frequency generator
    • Fuel tank deployment
    • Fuel level
    • Alarm on all internet connection.
    • GSM alarm monitoring
    • Capable soundproofing 70dB down to 55dB
    • Remote control
    • Environmental Class STAGE III
    • Disconnect 1-phase or 3-phase, respectively
    • UPS system battery backup 1-phase and 3-phase
    Standard Genset Specifications

    Engine
    • Perkins heavy duty diesel engine
    • 4 cylinder equipped with Water cooling
    • Mechanical governor control system
    • Replaceable wet type cylinder liners
    • Replaceable fuel filter, oil filter and dry element air filter
    • Cooling radiator and fan
    • Fuel connection hoses and manual sump oil drain valve
    • Exhaust silencer
    • Maintenance free battery including rack and cables
    • Jacket water heater (as option)
    • Perkins Engine Manual
    Alternator
    • Brushless, single bearing system
    • Insulation class H with circuit breaker protection
    • Standard degree of protection IP 23
    • Self-exciting and self-regulating
    • Main line circuit breaker
    • Close voltage regulation
