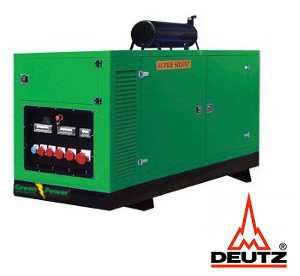

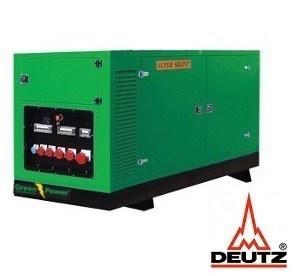

GREENPOWER DEUTZ Diesel Power generator 75kVA 60kW Soundproof canopy Automatic starting
ELVERK GreenPower with water cooled diesel engine of the brand Deutz. Supplied with a stable framework and Green Power electrical panel, voltmeter, frequency meter, amperage meter, hour meter, start key and indicator panel for oil, battery charge and low fuel level.
ELECTRIC GREENPOWER
- Prime running power (PRP) 75kVA, 60kW.
- Emergency stand by power (ESP) 82.5kVA, 66kW.
- 400V / 230 V @ 50 Hz 1500 rpm.
- High quality and reliable 4-cylinder Deutz diesel engine
- Easily operated control panel.
- Brushless permanent magnetized generator IP22 with optional electronic AVR.
- Fuel tank 120 liters with leakage protection
» Engine BF4M2012C Reference Guide
| Technical Data |
|
| Generator Engine | BF4M 2012 C |
| Type | Water cooled, 4 stroke,1500 rpm diesel engine |
| Number of Cylinder | 4 |
| Cylinder arrangement | in-line |
| Prime running power (PRP) | 75kVA/ 60 kW |
| Emergency stand by power (ESP) | 82.5kVA/66kW |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Fuel tank | 120 liters |
| Motor power | 90 / 66.1 (hp / kW) |
| 75% fuel consumption | 12 (l / h) |
| Rated current | 125 A |
| Bore/Stroke | 101 x 126 mm |
| Displacement | 5.66 Lt |
| Minimum idle speed | 650 min-1 |
| Max. rated speed | 2500 rpm |
| Specific fuel consumption | 225 g/kWh |
| Weight | 1270kg |
| Moving | 4040cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 2300 x 1050 x 1590 mm |
General specifications for silent generator:
- Modular design
- Anti-Corrosion powder coated
- Insulated with acoustic foam lining
- Central lifting ring, exhaust pipe can be removed, which is easy to transport
- Lockable doors with key
- Protective mesh for rotating parts
- Exterior emergency stop push button
- Thermally insulated engine exhaust system
- Doors fitted on each side
- Panel observing window
- Access to the radiator fill or cap
- 20 ', 30'or 40' container canopy is optionally
- Color is optional
- Fuel gauge or lube drain valve is optional
- Normal or super soundproof canopy is optional
- Base frame fuel tank or profile fuel tank is optional
- The muffler fixed position depend on the output power of the gen-set
- With specially treated steel sheet
- Stainless steel locks
- Control panel viewing window for monitoring the status of the generator set
- Good ventilation system and anti-heat radiation saturation
- Effective anti-vibration devices to ensure generator driven steadily
- Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
- Emergency stop button mounted outside
- Side lockable door easy for maintenance and installation
- Lube oil and cooling water drain pipe to the exterior of the canopy
- Fuel tank built with level indicator
| Standard equipment |
Other configurations |
- low oil pressure - low fuel level - battery charging error |
|
| Accessories | |
|
Engine:
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz - Water Cooled Diesel Engine
- mounted at front and back of engine
- Mecc Alte Alternator, WITH AVR
- Silenced to 69 db(A) @ 7 meters
- Single point lift, Fork lift access,
- Fully welded heavy duty canopy 2 mm.
- Heavy duty fuel tank & frame – 4mm walls.
- Internal muffler and exhaust pipe
- Engine liquid spill containment area.
- Mechanical fuel level gauge,
- Fuel tank drain tap, Oil drain tap and pipe
- 500 hour service intervals
- Feature packed genset controller – BE 24,
- 416/240 volt three pole Circuit Breaker.
- High alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator, 14 V; 55 A (Standard)
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
