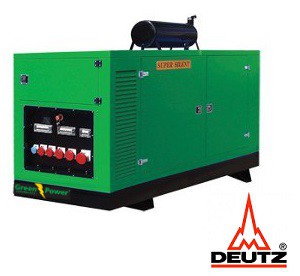

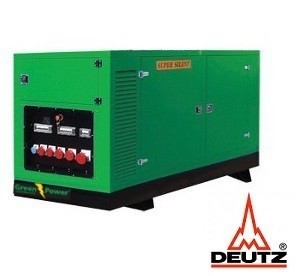

GREENPOWER DEUTZ Diesel Power generator 315kVA 252kW Soundproof canopy Manual starting




greenpower

ELVERK GreenPower with water cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.

ELECTRIC GREENPOWER

  • Prime running power (PRP) 315kVA, 252kW.
  • Emergency stand by power (ESP) 350kVA, 280kW.
  • 400V / 230 V @ 50 Hz 1500 rpm.
  • High quality and reliable 6-cylinder Deutz diesel engine
  • Easily operated control panel.
  • Brushless permanent magnetized generator IP22 with optional electronic AVR.
  • 400 liter fuel tank with leakage protection

 » Engine BF6M 1015 CG2 Reference Guide

Technical Data
Generator Engine BF6M 1015 CG2
Type Water-cooled 4 stroke,1500 rpm diesel engine
Number of Cylinder 6, in Line
Prime running power (PRP) 315kVA/ 252   kW
Emergency stand by power (ESP) 275kVA/220kW
Fuel tank  400 liters
Engine power 369/271 (hp / kW)
75% fuel consumption 55 (l / h)
Rated current 630 A
Rated Voltage  400V/230V
Speed 1500 rpm
Bore/Stroke 132/145 mm
Displacement 11.91 Lt
Minimum idle speed 800 min-1
Max. rated speed 2300 rpm
Engine fuel consumption 204 g/kWh
Weight 3750 Kg
Moving 11910cc
Noise level 69dB (A
Frequency 50Hz
Dimensions (L x B x H) 4350 x 1750 x 2350 mm

General specifications for silent generator:
  • Modular design
  • Anti-Corrosion powder coated
  • Insulated with acoustic foam lining
  • Central lifting ring, exhaust pipe can be removed, which is easy to transport
  • Lockable doors with key
  • Protective mesh for rotating parts
  • Exterior emergency stop push button
  • Thermally insulated engine exhaust system
  • Doors fitted on each side
  • Panel observing window
  • Access to the radiator fill or cap
  • 20 ', 30'or 40' container canopy is optionally
  • Color is optional
  • Fuel gauge or lube drain valve is optional
  • Normal or super soundproof canopy is optional
  • Base frame fuel tank or profile fuel tank is optional
  • The muffler fixed position depend on the output power of the gen-set
Silent generator set canopy
  • With specially treated steel sheet
  • Stainless steel locks
  • Control panel viewing window for monitoring the status of the generator set
  • Good ventilation system and anti-heat radiation saturation
  • Effective anti-vibration devices to ensure generator driven steadily
  • Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
  • Emergency stop button mounted outside
  • Side lockable door easy for maintenance and installation
  • Lube oil and cooling water drain pipe to the exterior of the canopy
  • Fuel tank built with level indicator
 Standard equipment
 Other configurations
 Circuit breakers
 Voltage meter
 Ampere meter
 Frequency meter
 Hour meter
 Emergency stop button
 Safety device in the engine for:
- high water temperature
- low oil pressure
- low fuel level
- battery charging error
Models with different voltage
60 Hz version

 Accessories
  • Mobile device on wheels
  • Type-approved trailer
  • Autostart
  • Automatic power switch ATS
  • Automatic power switch and phase-out
  • Parallel operation
  • Fuse type
  • Ground fault switch
  • Extraction point with current transformers at zero point
  • Radiostatic protection VDE 0875 curve N
  • Electronic speed control
  • Oil heater
  • Engine heater
  • Oil pump
  • Automatic tanker from external tank
  • Protective frame with lift hook
  • Container unit
  • Alternator voltage / frequency generator
  • Fuel tank deployment
  • Fuel level
  • Alarm on all internet connection.
  • GSM alarm monitoring
  • Capable soundproofing 70dB down to 55dB
  • Remote control
  • Environmental Class STAGE III
  • Disconnect 1-phase or 3-phase, respectively
  • UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications
Engine:
  • Integrated oil cooling
  • Overhead valve
  • The two compression and one oil scraper ring (per cylinder)
  • Full-flow oil filter cartridge type
  • Fuel filter cartridge type
  • Electric starter 12V
  • Exhaust silencer
        Genset Features:
              • Original Deutz - Water Cooled Diesel Engine
              • Fully welded heavy duty base frame & tank.
              • Engine liquid spill containment area.
              • 500 hour service intervals
              • Remote Start - Genset Controller,
              • 415 Volt Circuit Breaker.
              • Mecc Alte Alternator
              • 300 % - Alternator motor starting capacity.
              • Eng/Alt wiring is simple & color coded.
              • Circuit breakers in control wiring
              • Eng/Alt/Controller manuals included

                    Alternator:

                    • Three-phase alternator 12V or 24V
                    • Replaceable cartridge
                    • Optional connection for cab heating
                    • Close voltage regulation
                    • Standard degree of protection IP 22

                    Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.

                        Maximum continuous power (LTP)
                        • GREENPOWER DEUTZ Diesel Power generator 315kVA 252kW Soundproof canopy Manual starting
                          Art. nr.
                          GP315DZS
                          GREENPOWER DEUTZ Diesel Power generator 315kVA 252kW Soundproof canopy Manual starting
