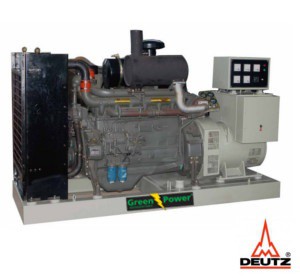

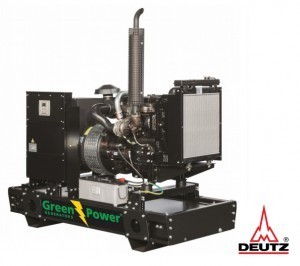

GREENPOWER DEUTZ Diesel Power generator 165kVA 132kW Open frame Manual starting




greenpower

ELVERK GreenPower med vattenkyld dieselmotor av märket Deutz. Levereras med stabilt ramverk och Green Power elektropanel, voltmätare, frekvensmätare, amperemätare, tim-mätare, startnyckel och indikationspanel för olja, batteriladdning och låg bränslenivå. Som tillval levererar vi även tystade versionen.

ELVERK GREENPOWER
  • Prime running power (PRP) 165kVA, 132kW.
  • Emergency stand by power (ESP) 181,5kVA, 145,2kW.
  • 400 / 230 V @ 50 Hz 1500 rpm.
  • Hög kvalitet och pålitlig 6-cylindrig Deutz dieselmotor
  • Lättmanövrerad kontrollpanel.
  • Borstlös permanent magnetiserad generator IP22 med tillval elektronisk AVR.
  • Bränsletank 250liter med läckageskydd

» Engine BF6M1013EC Reference Guide

 Technical Data
Generator Engine BF6M 1013 EC
Type Water cooled 6 stroke, 1500 rpm diesel engine
Number of Cylinder 6, in Line
Prime running power (PRP)  165kVA/ 132  kW
Emergency stand by power (ESP)  181.5kVA/145.2kW
Fuel tank  250 liters
Engine power 193.3 / 142 (hp / kW)
75% consumption 24.3 (l / h)
Rated current  250 A
Rated Voltage 400V/230V
Speed 1500 rpm
Bore/Stroke 108/130 mm
Displacement 7.15 Lt
Minimum idle speed 600 min-1
Max. rated speed 2300 rpm
Engine fuel consumption 193 g/kW·h
Weight 1780 Kg
Moving 7150cc
Noise level 69dB (A)
Frequency 50Hz
Dimensions (L x B x H) 2400 x 1100 x 2000 mm


 Standard equipment
 Other configurations
 Circuit breakers
 Voltage meter
 Ampere meter
 Frequency meter
 Hour meter
 Emergency stop button
 Safety device in the engine for:
- high water temperature
- low oil pressure
- low fuel level
- battery charging error
Models with different voltage
60 Hz version


 Accessories
  • Mobile device on wheels
  • Type-approved trailer
  • Autostart
  • Automatic power switch ATS
  • Automatic power switch and phase-out
  • Parallel operation
  • Fuse type
  • Ground fault switch
  • Extraction point with current transformers at zero point
  • Radiostatic protection VDE 0875 curve N
  • Electronic speed control
  • Oil heater
  • Engine heater
  • Oil pump
  • Automatic tanker from external tank
  • Protective frame with lift hook
  • Container unit
  • Alternator voltage / frequency generator
  • Fuel tank deployment
  • Fuel level
  • Alarm on all internet connection.
  • GSM alarm monitoring
  • Capable soundproofing 70dB down to 55dB
  • Remote control
  • Environmental Class STAGE III
  • Disconnect 1-phase or 3-phase, respectively
  • UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications
Engine:
  • Integrated oil cooling
  • Overhead valve
  • The two compression and one oil scraper ring (per cylinder)
  • Full-flow oil filter cartridge type
  • Fuel filter cartridge type
  • Electric starter 12V
  • Exhaust silencer
Genset Features:
  • Original Deutz - Water Cooled Diesel Engine
  • Fully welded heavy duty base frame & tank.
  • Engine liquid spill containment area.
  • 500 hour service intervals
  • Remote Start - Genset Controller,
  • 415 Volt Circuit Breaker.
  • Mecc Alte Alternator
  • 300 % - Alternator motor starting capacity.
  • Eng/Alt wiring is simple & color coded.
  • Circuit breakers in control wiring
  • Eng/Alt/Controller manuals included

Alternator:

  • Three-phase alternator 12 V or 24 V
  • Replaceable cartridge
  • Optional connection for cab heating
  • Close voltage regulation
  • Standard degree of protection IP 22

Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.

      • GREENPOWER DEUTZ Diesel Power generator 165kVA 132kW Open frame Manual starting
        Art. nr.
        GP165DZ
        GREENPOWER DEUTZ Diesel Power generator 165kVA 132kW Open frame Manual starting
