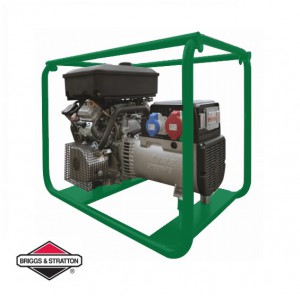

Briggs and Stratton generator 12kVA 10kW 1-phase 230V electric start with battery
Briggs & Stratton 12kVA 10kW 1-phase 230V electric start with battery
» Click here to see Engine Datasheet
Standard Genset Specifications
- Briggs & Stratton 18hp Vanguard V-Twin OHV engine
- Air-cooled, 4-stroke horizontal engine
- Automatic decompression for easy start
- Heavy-duty ball bearing supported crankshaft
- Fuel tank 8.5l with fuel strainer
- Oil warning system
- Briggs & Stratton Motor
» Click here to see Engine Datasheet
| Technical Data | |
|
Engine model |
Briggs & Stratton 18hp |
| Type | Air cooled 4-stroke Gasoline engine |
| Displacement |
570 cm3 |
| Number of Cylinders | 2 |
| Bore x Stroke |
68 x 66 mm |
| Prime running power (PRP) | 12 kVA/10 kW |
|
Emergency stand by power (ESP) |
13,2 kVA/10,5 kW |
|
Speed |
3000 rpm |
| Engine power | 18/13.2 (hp/kw) |
| Fuel. cons at cont. rated power | 4.3 Lt/hr |
| Starting System | Recoil/electric start |
|
Oil volume |
1.7 lt |
|
Rated voltage |
230V |
| Dimensions (LxWxH) | 860 x 550 x 650 mm |
| Weight | 111/125 Kg |
GreenPower generators equipped with gasoline engine from Briggs and Straton. The units are made especially for housing, mobile installations, campsites and rentals etc.
Delivered in 1-phase 230 volts, 50 Hz.
GreenPower electrical panel, generator and circuit breaker.
Electrical start function.
| Standard equipment | Accessories |
| • Meter, running time • AVR Electronic regulation |
• Removable trolley |
| Other configurations | |
| • Models with different voltage • 60 Hz version |
Engine Features
- Fuel efficient, high output operation
- Smooth performance
- Exceptionally quiet
- Proven reliability
- Easy to use and maintain
- Emissions compatible
Available Options
- Low profile versions
- Gear reduction options
- Spark arrester available
- Charge and lamp coils with multiple output options available
- Cyclone air cleaner available
- Brushless, single support system, 2 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self regulating and adjusting
- Screen protected and drip proof
- Close voltage regulation
