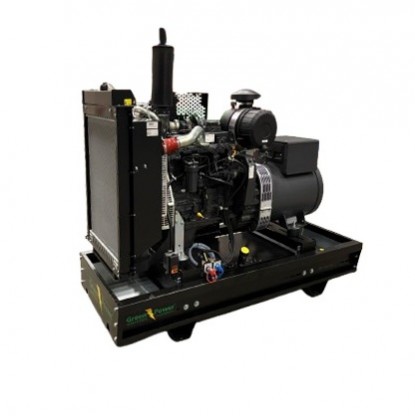

GREENPOWER Iveco FPT Diesel Power generator 100kVA 80kW Open frame Manual starting
Greenpower Equipped with Iveco water-cooled diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.
Specification
- Prime running power (PRP) 100kVA, 80 kW
- Emergency stand by power (ESP) 110kVA, 88kW
- 3~ 50 Hz. 400V 1500 rpm
- High quality and reliable 4-cylinder Fiat diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP22
» Click here to see Datasheet
» Click here to see MECC ALTE Datasheet
| Technical Data | |
| Generator Engine | NEF N45TM2A |
| Type | 4 cycle, water-cooled, diesel engine |
| Landuse Type of Unit | Low Noise, Automation Type |
| Number of cylinder | 4 |
| Cylinders arrangement | In-line |
| Displacement | 4.5liter |
| Bore x Stroke | 104 x 132 mm |
| Prime running power (PRP) | 100 kVA/80 kW |
| Emergency stand by power (ESP) | 110 kVA/88 kW |
| Fuel consumption at 50/75/100% power output | 11/15.5 /22(liter/time) |
| Engine Power | 117.3/87.5 (Hp/kW) |
| Fuel Consumption | 15.5 liter/hour |
| Rated Current | 144,4 A |
| Rated Voltage | 400V |
| Dimension (LxBxH) | 2100x1000x1800 mm |
| Weight | 1155Kg |
| Tank capacity | 120lt |
| Voltage regulation | AVR |
| Fuel type | Diesel |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Engine
- Iveco FPT heavy duty diesel engine
- 4 cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Iveco FPT Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line ciucuit breaker
- Close voltage regulation
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
